Electric Drop Bolt Lock DC 12V Fail Safe NC Mode Electronic Door Lock

Product Details

• Color: Silver

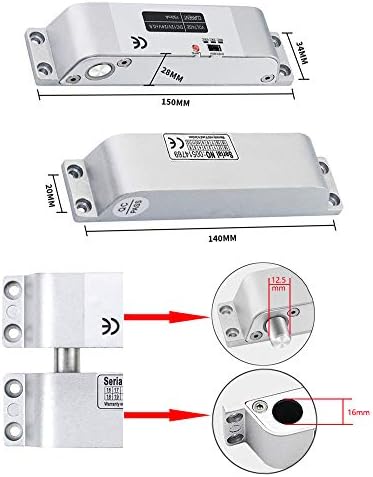

• Item Dimensions: 5 x 1 x 1 inches
• Item Weight: 16 ounces
• Control Method: Remote
• Included Components: Electric drop bolt lock, Panel Cover, Screw Bag, User Manual
• Number of Items: 1
• Unit Count: 1 Count
• Model Name: 0190373224391
• Model Number: 0190373224391
• Shape: Rectangular
• Recommended Uses For Product: Securing doors in various settings, access control, controlling access in business company shops, homes, and establishments, suitable for wooden, metal, and fireproof doors
• Number of Pieces: 1
• Number of Packs: 1
• Manufacturer Part Number: DB-Lock
• Additional Features: Keyless
• Lock Type: Mortise Lock
• Controller Type: electric
• Connectivity Protocol: Wired (specific cable configuration)
• Style Name: Modern
• Material Type: Aluminum
• Finish Types: alloy
• Item Highlight: Access Control Security Lock Door (X Bolt Lock), Time Delay Surface Mounted, Power-On Locked for Wooden Metal Fireproof Door

About this item

• Made of aluminum alloy lock body structure, durable and beautiful article. Fail-safe mode, power-on lock, power-off unlock.
• NC Mode: Fail-safe type, Power-off unlock , when the power is turned on, the red light indicates unlocking and the green light indicates lock.

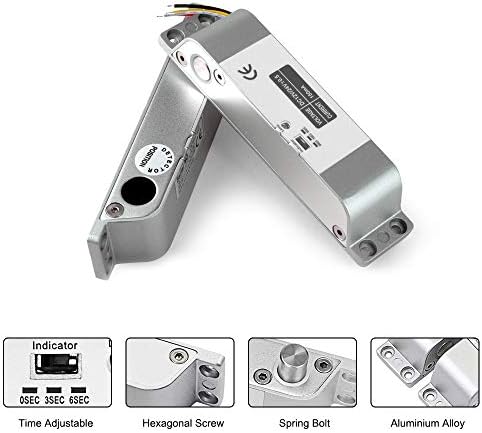

• Working with DC 12V, with no external interference, the delay adjustment can be made by itself, and the delay time can be preset to 0s / 3s / 6s.

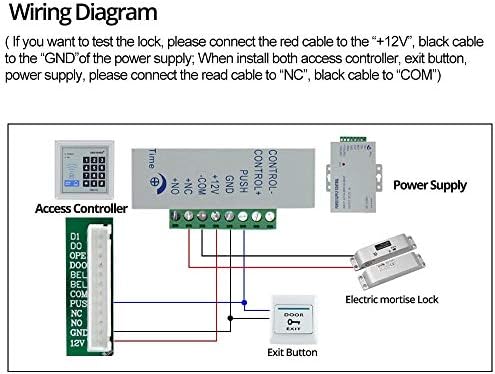

• Electric Mortise Lock, NC Mode fail-safe type, please connect the red cable to "+12v”, and black cable to “GND" of the 12VDC power supply when testing it.

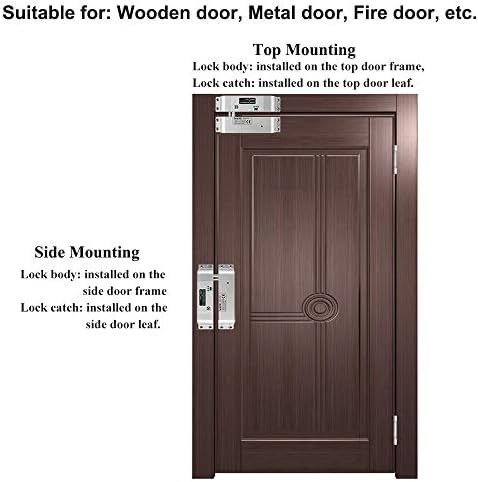

• X Bolt Lock Surface mounted, suitable for wooden door, Metal door, Fireproof door, etc. can be opened by push button, remote control, etc. (Not included)
